J4125主板+顯示屏方案win10/Linux系統可配7寸-24寸TFT帶觸摸
MT-J4125主板搭載英特爾賽揚J4125四核處理器，采用四核處理技術，主頻為2.0GHz。該主板是一款高速無風扇設計的主板，J4125B屬于高性能X86架構產品，基于14納米先進制程，支持多種操作系統。

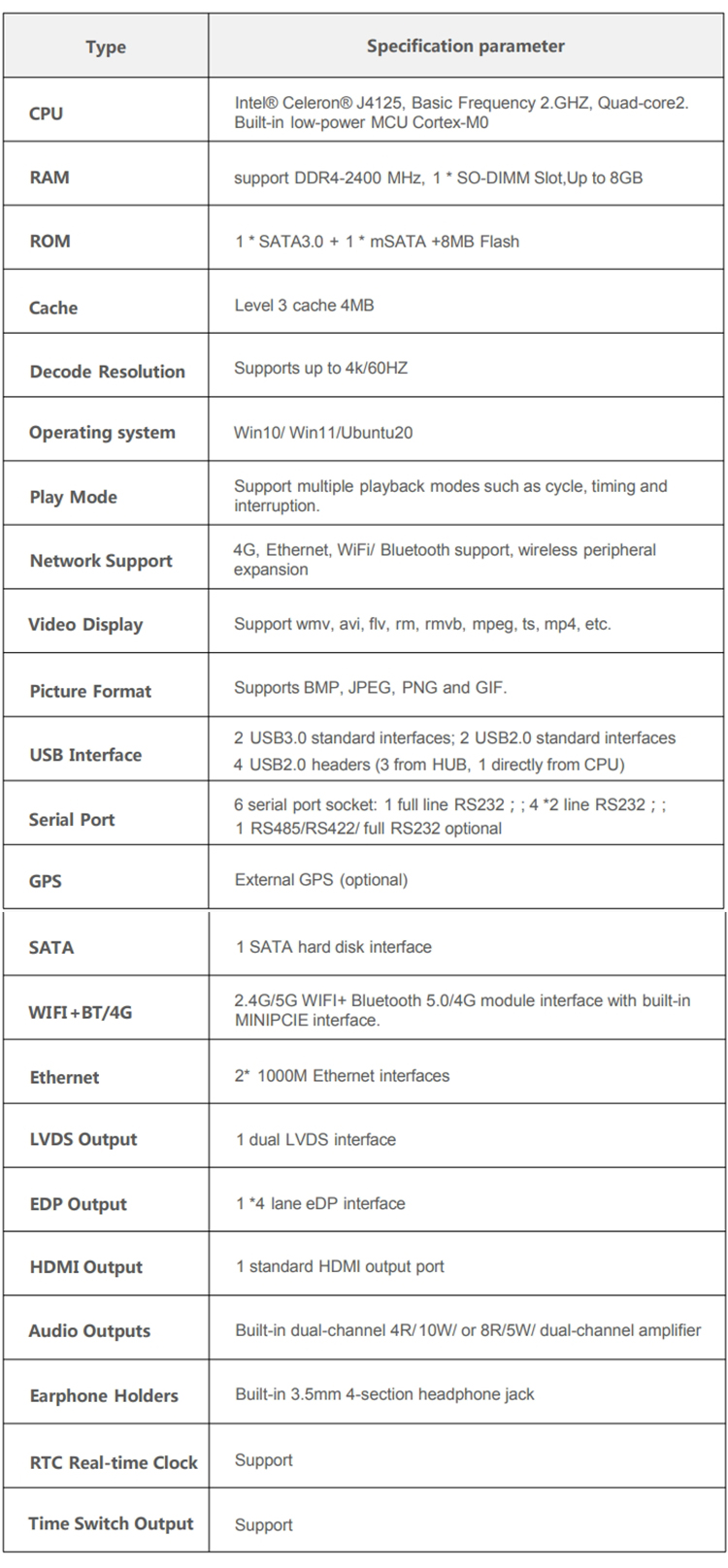

| 生產廠家 | 潤中 |
| 產品型號 | MTJ4125B |
| CPU | Intel® Celeron® J4125, Basic Frequency 2.GHZ, Quad-core2. Built-in low-power MCU Cortex-M0 |
| RAM | support DDR4-2400 MHz, 1 * SO-DIMM Slot,Up to 8GB |
| ROM | 1 * SATA3.0 + 1 * mSATA +8MB Fla |
| Operating system | Win10/ Win11/Ubuntu20 |
| Network Support | 4G, Ethernet, WiFi/ Bluetooth support |
| WIFI+BT/4G | 2.4G/5G WIFI+ Bluetooth 5.0/4G module interface with built-in MINIPCIE interface |
| USB Interface | 2 USB3.0 standard interfaces; 2 USB2.0 standard interfaces 4 USB2.0 headers (3 from HUB, 1 directly from CPU) |
| Serial Port | 6 serial port socket: 1 full line RS232；; 4 *2 line RS232；; 1 RS485/RS422/ full RS232 optional |
| Ethernet | 2* 1000M Ethernet interfaces |
| LVDS Output | 1 dual LVDS i |
-
